3 Phase Power Formula

November 17, 2024 Post a Comment

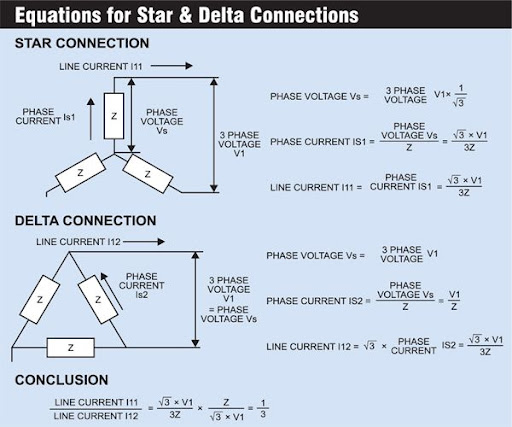

3 phase power formula

Power Formula

What is the 1.73 in 3 phase?

In a 3-phase system the voltage between any two phases is 3 times higher than the voltage of an individual phase by a factor of 1.73 (square root of 3 to be exact).

How do you calculate phase power?

Now we take the square root of that number this gives us our RMS voltage of 120 volts. This is the

How many kW is 3phase?

The SQRT(3) is used as line voltage for 208V output is derived from using two hot conductors. For example, a 30A 3 phase unit outputting 208V would be 208 x 24 x SQRT(3)=8.6kW.

How do I calculate power?

Power is equal to work divided by time. In this example, P = 9000 J / 60 s = 150 W . You can also use our power calculator to find work – simply insert the values of power and time.

What is electrical power formula?

The electric power is given by P = VI, where V is the potential difference, I is the electric current and P is the electric power.

Is 480V always 3 phase?

Most US industrial facilities use 480V 3 Phase instead of 208V or 240V because it provides 2.3 (480 /208) times or 2.0 (480 /240) times more power with the same current. More important is it provides the same power with less current which provides added benefits.

What is kVA to kW?

P (power) = I (current) × V (voltage) That means that in DC circuits, 1 kVA is equal to 1 kW. That means that 1 kVA is equal to 1,000 watts. In alternating current (AC) circuits, where kVA to kW conversion is mostly used, the kVA to kW conversion depends on the power factor (PF).

How do I convert kVA to kW?

So kilovolt-amps are equal to kilowatts divided by the power factor.

What is 3phase power factor?

Power factor is defined as a ratio between real power and apparent power. If current and voltage are in phase, the power factor is 1. In the 3-phase circuit, current and voltage are not in phase; thus the power factor will be anywhere between 0 and 1.

How do I calculate kVA?

To convert Amps to kVA we use this formula (single phase) kVA = Amps x Volts / 1000.
Calculating Three Phase kVA from Amps formula. kVA = Amps x Volts x 1.732 / 1000. ...
Calculating Three Phase Volts from kVA formula. Volts = kVA / Amps / 1.732 x 1000.

Why do we use three phase power?

A three-phase circuit provides greater power density than a one-phase circuit at the same amperage, keeping wiring size and costs lower. In addition, three-phase power makes it easier to balance loads, minimizing harmonic currents and the need for large neutral wires.

What is line voltage in 3 phase?

Our domestic three-phase power supply or 440 volts is the line voltage. The single-phase 230 volts AC supply is the voltage difference between a phase and the neutral junction or rather the phase voltage.

How many amps are in a kW?

Example 2: 1 kW Washing Machine To Amps Most washing machines draw about 1,000 W or 1 kW of electrical power. You don't need upgrades to your electrical circuit for an average washing machine. Here is how many amps it draws: 1 kW washing machine needs about 4.55 Amps to run.

How many amps are in 220 volts?

But if you plug such a device into 220 V, the current generated is only 13.64 Amps (there is no need for amp breakers).

What's the unit of power?

The SI unit of power is the watt (W), in honor of Scottish inventor James Watt (1736 - 1819).

How do you calculate AC power?

What is the formula for AC power? In the case of an alternating current AC, power is calculated by the formula: P=I_{rms}*V_{rms} where both I_{rms} and V_{rms} are the root-mean-square values of current and voltage respectively. Power is always measured in Watts.

How do I calculate kWh?

Here's the Formula for Calculating Watts Into Kilowatt-Hours: kWh = (watts × hrs) ÷ 1,000.

What is the formula of AC and DC?

Circuit	Power
DC	P = V²/R
DC	P = I² × R
Single Phase AC Real Power	½ V_P × I_P × cos(θ) = V_RMS × I_RMS × cos(θ)
Single Phase AC Reactive Power	½ V_P × I_P × sin(θ) = V_RMS × I_RMS × sin(θ)

Is 480 a Delta or Wye?

The "480 Y" indicates the transformer is wye-connected and has 480 volts between any two phases. The "277 V" indicates there are 277 Volts between any phase and neutral (N). The phase-to-phase voltage is 1.732 times phase-to-neutral voltage (277 x 1.732 = 480).
